Windscreen Wiper Motor Lucas Style 2-Speed Full Kit GXE7708-SetA

Stock Status for This Item

Out of Stock; See ETA Tab for arrival date

Red Watch

Windscreen Wiper Motor 2-Speed Mini MGB Triumph Range Rover MG Midget  Full Kit   GXE7708-SetA

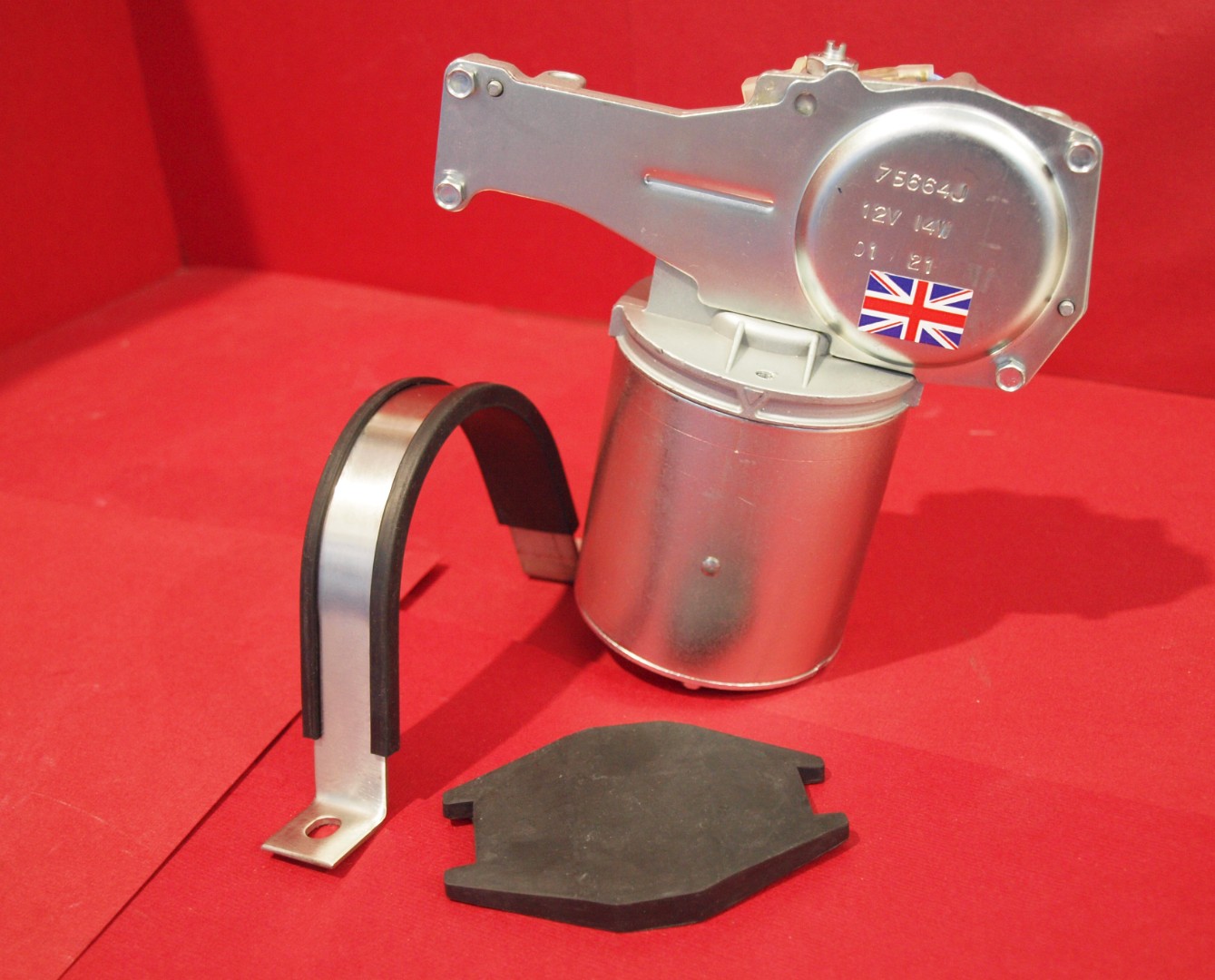

A full replacement kit to allow you to replace the Wiper Mechanism on your Classic Car:

Includes

Two Speed Wiper Motor ; GXE7708

Stainless Steel Bracket  :   BHA4790SS

Rubber Mounting Pad.  :   150844A

Wiper Motor (2 Speed ) Mini, MGB, Triumph, Range Rover, MG Midget     517621 or  GXE7708

WIPER MOTOR  MINI (2 SPEED) MGB, TRIUMPH.     GXE7708

Note the outside diameter of the motor case is 76mm

Wiper motor . (Note Supplied without the Drive Gear. You have to rescue your old gear as the angle of the wiper sweeps are different for many cars)

Note the pictures with the Drive Gear Part 608092A

This is shown just to illustrate the different gears that can be fitted into this motor. In this case this is a 110 Degree Angle Drive gear that's rated correct for a Classic Mini, but it is also found on many other cars. We are able to supply this gear. It is not included in this offer here.

Your own drive gear will more than likely fit into the white nylon slot picture in the motor. They are designed to be interchangeable.

Note the underside of the cover has a raised portion that will press down on the drive rod once it is installed This should be lubricated with the grease.

The actual Nylon lined slot in which the rod from the wiper drive track runs measures 10mm wide and 9.5mm deep.

The length that the rod moves in and out is of course determined by the angle of the sweep.

If you are in doubt please send us measurements of your drive gear and we can compare to this motor.

As typically used on :

Classic Mini Mk2 on (2 speed)

MGB 2 speed

MG Midget (Late 1275 and 1500)

Triumph Spitfire MK IV & 1500

Triumph 2000, 2500TC, 2.5PI, 2500S

Triumph GT6

Triumph TR6

Range Rover Classic (rear wiper)

Land Rover 90 / 110 / Defender to 1991

Supplied without drive gear or adaptor
