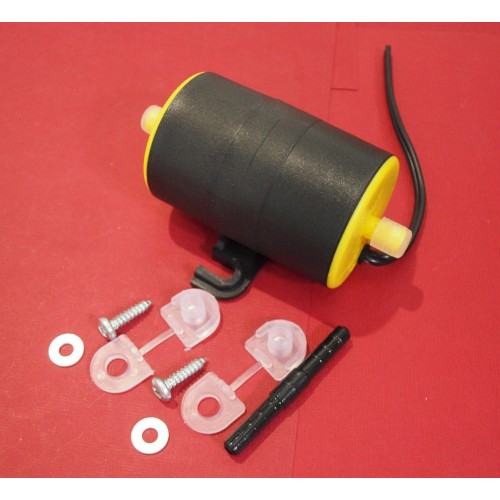

FUELFLOW 015 Low Pressure Piston Fuel Pump 1.5l per minute 12V (Positive & Negative Earth) FF-015L

The FUELFLOW 015 Low Pressure Piston Pump (YELLOW) has been specifically designed to suit engines that have a need for low pressure fuel supply.

This is a specialist pump that would generally be used as a replacement fuel pump on carburetted vehicles that have low pressure fuel systems such as motorbikes and vintage vehicles.

The Pump has an internal By-Pass system to allow the fuel to circulate when the outflow is blocked.

This allows for instant fuel delivery when there is demand from the carburettor.

The use of a By Pass Restrictor system in some vehicles also allows for this

Includes :

2 x Silicon Mounting Pads and Self Tapping Screws.

Designed as an in-line fuel pump

We offer a two year (24 Month) Warranty with this item (RTB) return to base with Proof of Purchase.

PISTON TYPE ELECTRIC FUEL PUMP
	PRODUCT SPECIFICATION CHART
	PART NUMBER	015L
	APPLICATION	UNIVERSAL REPLACEMENT
	VOLTAGE	12 VOLT
	EARTH	NEGATIVE OR POSITIVE
	OPERATING PRESSURE (PSI)	1 – 2 PSI
	MAX. FLOW	1.5 LITRE/MINUTE
	MAXIMUM PRESSURE (NO FLOW)	2 – 2.5 PSI
	DRY PRIME	IMMEDIATE FUEL DELIVERY
	DIMENSIONS	11(L) X 9.5(W) X 6(H) CM
	WEIGHT	0.39 KG
	FILTER	IN-BUILT 50 MICRON FILTER & MAGNET ASSEMBLY

FEATURES

• High Quality Plastic construction delivers a durable, fully insulated and weatherproof finish.
• Unique design delivers a compact, lightweight and efficient pump
• This pump features a uniquely designed restrictor tube to maintain a stable fuel system pressure between 1-2 psi in a return-to-tank system.
• Unique design features allow progressive switching of current to enable near silent operation, minimal vibration and no radio interference.
• Reverse polarity protection ensures that the pump is protected in the event of incorrect installation.
• Instant fuel delivery means no priming damage to the pump during initial start up.
• Suitable replacement for both mechanical and electric fuel pumps.
• Comes complete with installation instructions and mounting kit.
